Water gutter roll forming machine

 Water gutter roll forming machine


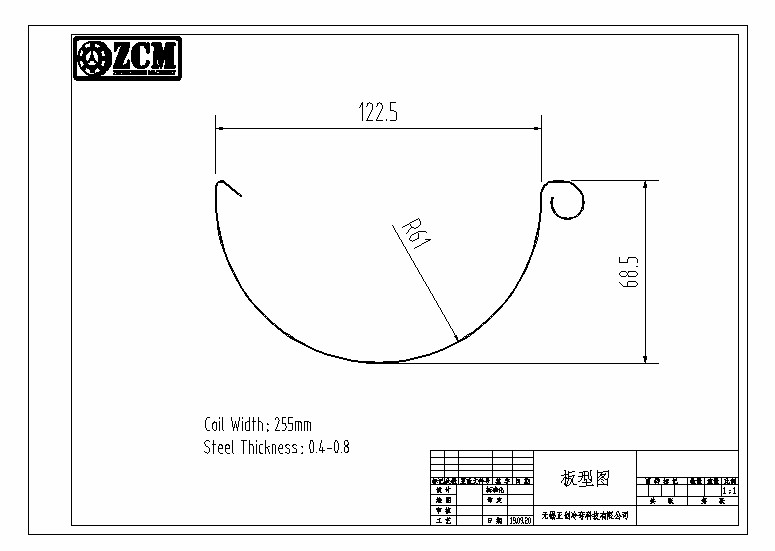

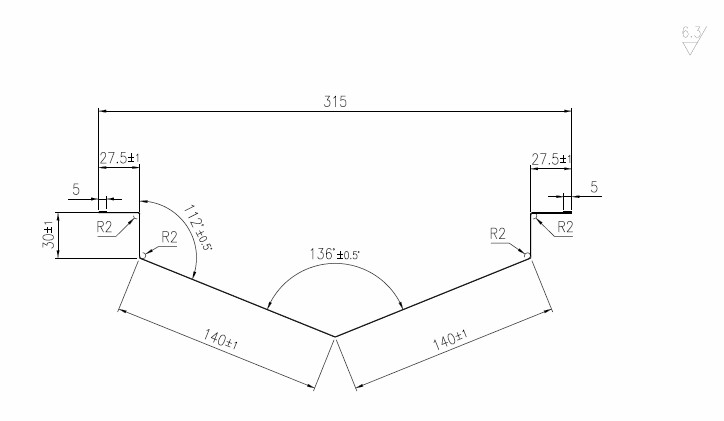

Main date

1. Feeding width：370 mm, thickness range: 0.9-2.0mm
2. Working speed：12～20M/min
3. Roller Step：18 steps
4. Roller material: GCr15, HRC 58-62°
5. Main shaft material：40Cr with thermal treatment, Diameter of shaft ￠75mm.
6. Main motor power：15KW
7. Boundary dimension：8500*1000*1200
8. Thickness：Q235,0.9-2.0mm
9. Drive mode：column structure with chain drive
10.   Cutting mode：hydraulic cutting after forming
11. Electric system：Siemens PLC, Yaskawa converter, Omron encoder
12. Machine structure：column structure
13. Hydraulic station power: 5.5KW

B. Production Technology Process

 Feeding      Rough shape cutting and put it into the machine        Adjusting and guiding        forming         cutting after forming                output

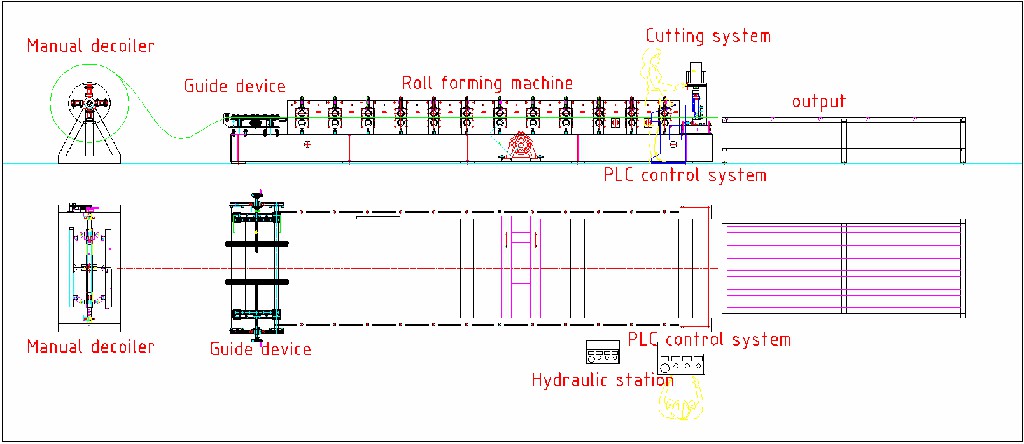

Layout
