Stiffener of steel silo

Stiffener of steel silo roll forming machine

We are the professional manufacturer of making upright steel silo roll forming machine . This kind of machine can make the upright of steel silo which is used in the storage area, such as grain store, building material, grain and oil and environmental protection area and water tank, etc.
The whole line includes the 5T decoiler, mean roll forming machine, punching system, cutting system,etc. We can design this machine according to customer requirement.  Please contact us if you want to learn more details of this kind of machine.



A. Main data

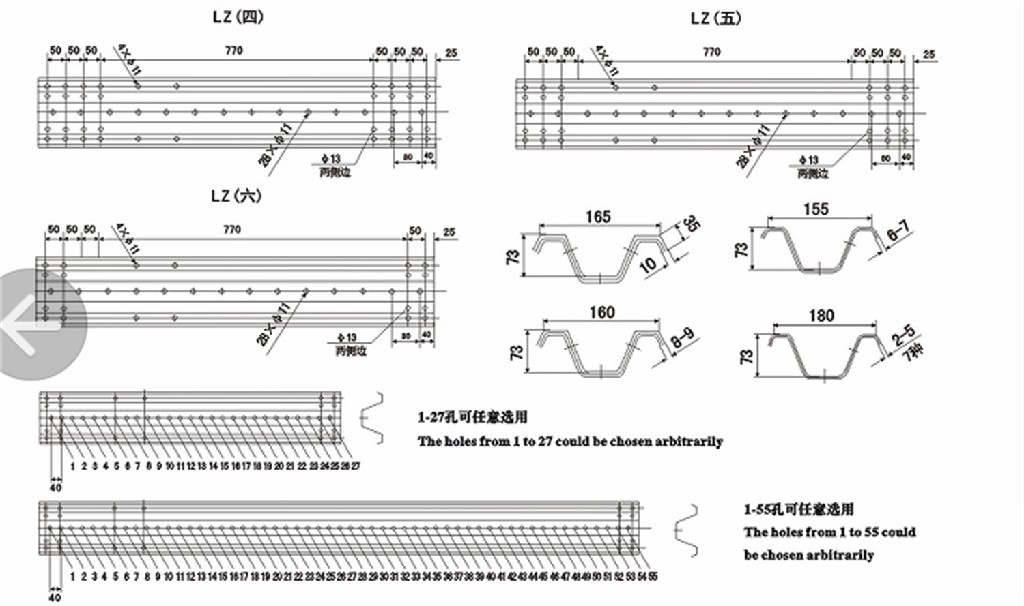

1. Material specification：width 205mm ,thickness 0.8-1.0mm.Yield stress≤350MPa
2. Working speed：10～18M/min
3. Roller step：28 steps
4. Main motor power：15kW
5. Hydraulic station motor power：3kW
6. Roller material: GCR15 quenching treatment HRC58-62°.Secondary processing after quenching treatment in order to eliminate deformation after the quenching treatment, and guarantee the rollers precision.
7. Main shaft material：45# high quality steel with thermal refining treatment.
8. Shaft diameter：φ75mm
9. Hydraulic station pressure：10～12 Mpa
10. Blade material：Cr12mov, HRC58-62°
11. Electronic system：The whole line use PLC to control, PLC is Siemens PLC.
12. Machine dimension(LxWxH)：14800x1050x1500mm

13. Machine frame is H400 steel. Thickness of the wall board is 18mm.

B. Machine structure
The machine is including 3T de-coiler, Transmission gear, machine, roll forming machine(including the guide platform), cutting machine, hydraulic station, electronic system, output table, etc.

C. Production technology process

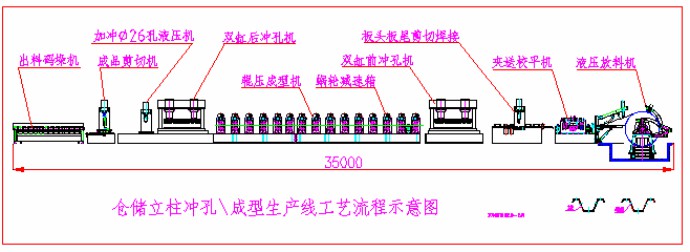

Manual de-coiler --- Leveling --- Forming --- cutting after forming--- output

Layout
