Main channel roll forming machine
Tel: 8618961855618
Whatsapp: 8618961855618
The light steel stud roll forming machine can make all kinds of light stud to meet all the requirements in this area, Light Gauge steel roll forming machine is the most popular machine and its product includes stud, track, furring channel, main channel (primary channel), carrying channel, wall angle, corner angle, edge bead, shadow line wall angle, top hat, clip, etc, our machine has an extensive use in Drywall system, Ceiling system and Floor system. Thickness is normally 0.4-0.6mm or up to 1.2mm. Raw material could be: cold-rolled steel, Galvanized steel, PPGI, high-tensil steel. Our machine speed can reach about 70M/min, if you want the automatic stacker, we also can make the stacker in order that you save your labor cost.
A Main data
| Item | Specification | Unit |
1 | Machine Type | Main channel profile/ U stud | |
2 | Structure | Column structure | |
3 | Raw material | Galvanized steel coil | |
4 | Feeding width | / | mm |
5 | Effective width | 38 | mm |
6 | Thickness | 0.4-1.2 | mm |
7 | Yield strength | 350 | Mpa |
8 | Forming speed | 0-100 | m/min |
9 | Main power | 7.5 | KW |
10 | Roller QTY | 12 | Step |
11 | Roller material | Cr12, with quenching treatment, and chroming plate on the surface | |
12 | Embossing device | Knurling and small wave (2 sets ) | |
13 | Main shaft material | 45# high quality steel with thermal refining treatment | |
14 | Main shaft diameter | 50 | mm |
15 | Blade material | Cr12Mov quenching treatment | |
16 | Cutting mold | Servo following cutting system | |
17 | Color | ( customized) | |
18 | Decoiler | Double head automatic decoiler, every head capacity is 3T. Double head is one-key tension, double head can one-key automatic rotate. |
B.Machine structure
The roll forming machine is including 3T double head decoiler, drive system, roll forming machine, cutting device, hydraulic system, electric system, and output table, cooling system for hydraulic station and electric cabinet etc.
C. Production technology process
Feeding forming
following cutting
output

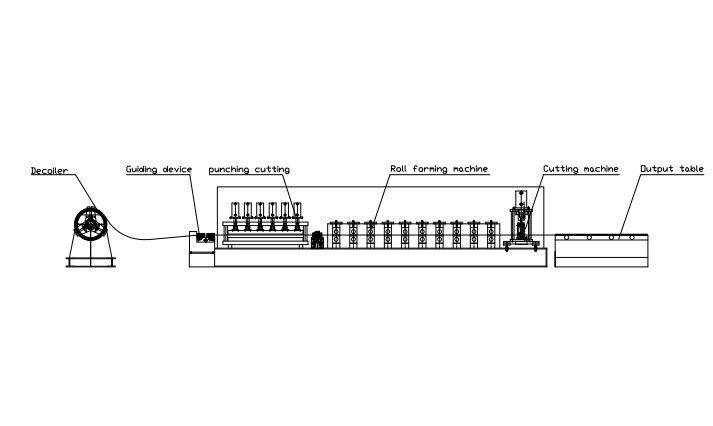

Layout
