heavy duty C section roll forming machine

heavy duty C section roll forming machine

We are the professional manufacturer of making the heavy duty rollforming machine in China. We export this kind of machine to a lot of countries,

please contact me if you want to learn more details of the whole line. We also can make the automatic stacker for the end product which can improve the efficiency of worker.





A. Main data

1.2.1 Feeding width range of the material：302

1.2.2 Strip steel thickness range：3-6mm

1.2.3 Strip steel texture：Q235

1.2.4 Working speed： 8-15m/min

1.2.5 Min length of work piece：2000 mm

1.2.6 Tolerance of the straightness: 1—1.5 mm /1500 mm

1.2.7 Angle tolerance of the work piece ≤±1.5/1000mm

1.2.8 Fixed length of the work piece:10m±1.5mm

2.  Rolling range of the end products

2.1 Max thickness of the solar stand: 6mm

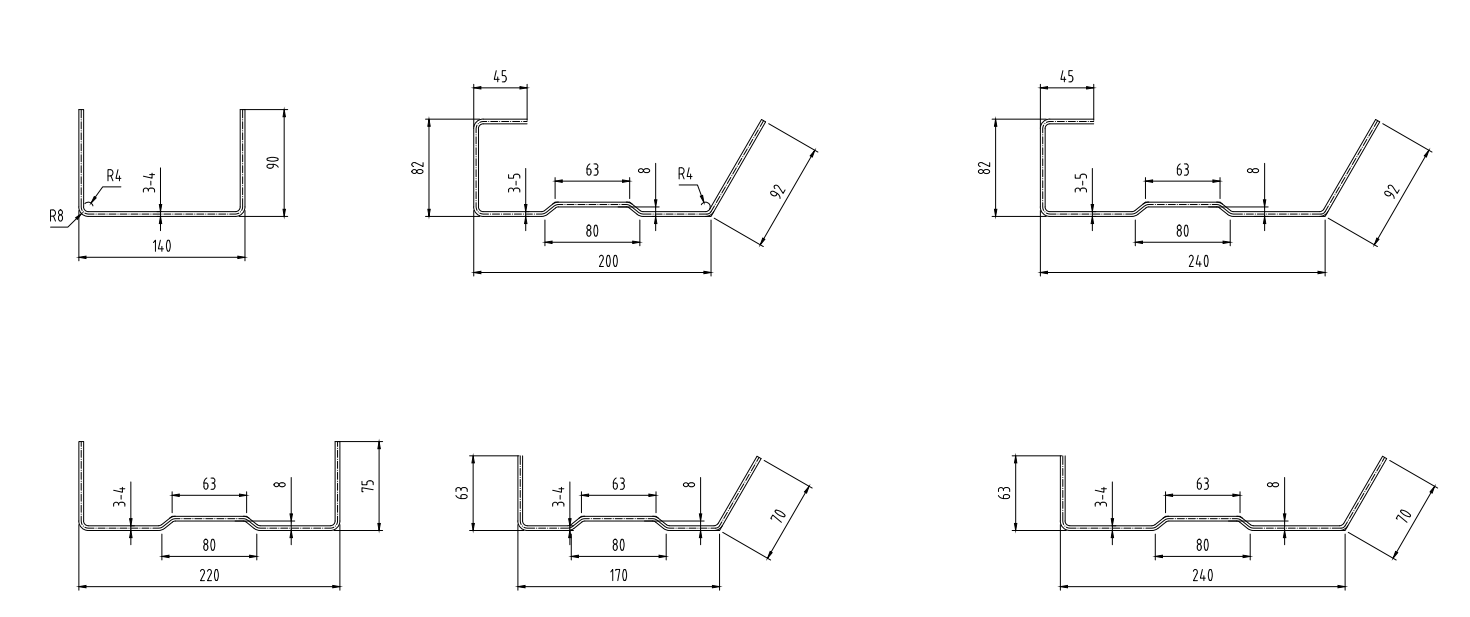

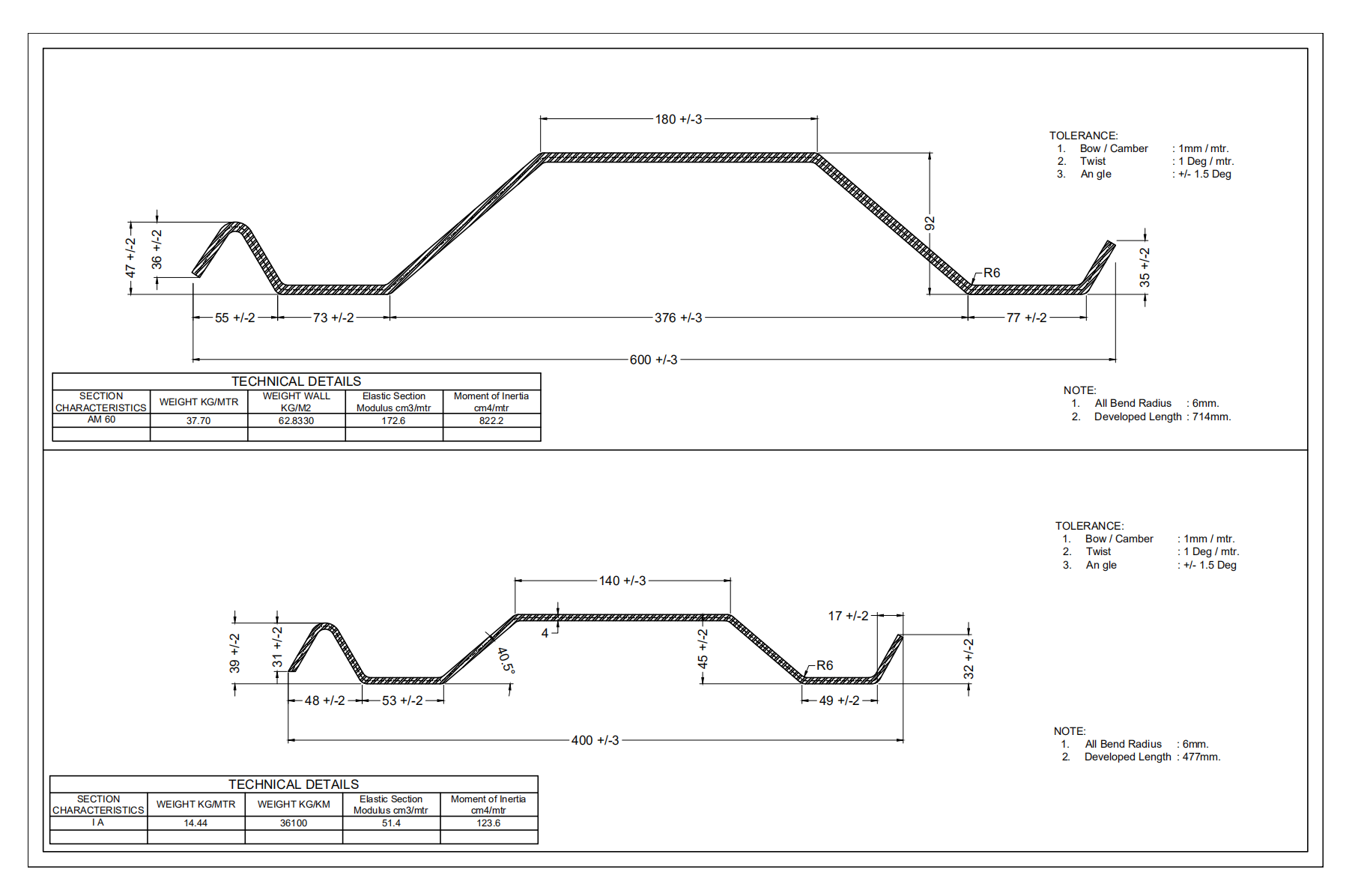

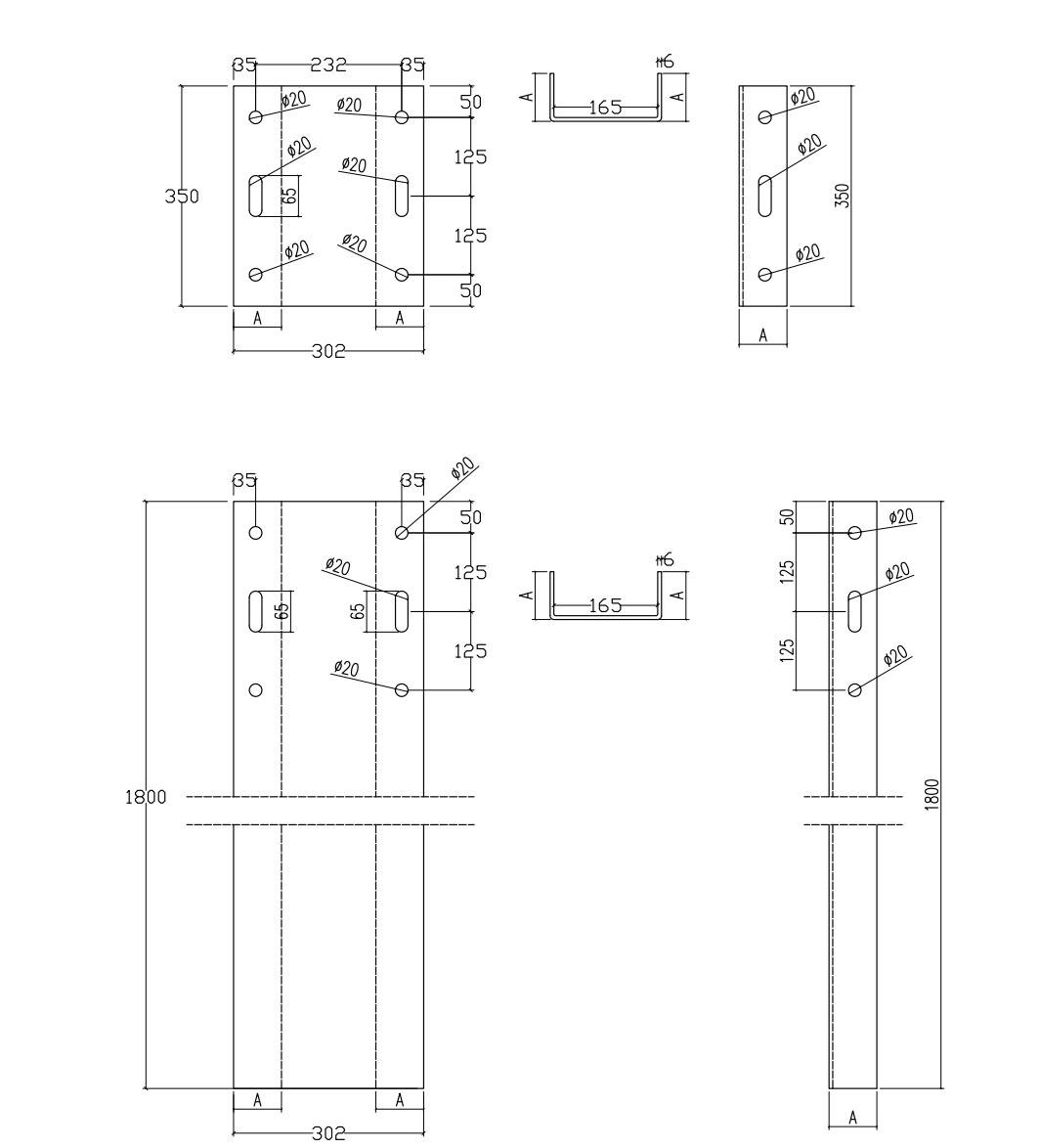

2.2 Product specification

3. Full - Automatic U shape  roll forming machine

Hydraulic following feeding---> Leveling---> Punching ---> forming ---> Hydraulic cutting---> output

Machine main parts specification

1.10T hydraulic decoiler system is including the automatic control system, adjustment system, hydraulic system. The hydraulic decoiler is including press head, shovel head, hydraulic extension coil, hydraulic motor drive feeding, automatic following feeding.

The decoiler foundation is welded by steel plate, automatic parts is including the taper adjusted block, hydraulic cylinder, and cylinder joint lever, etc.

Operating principle: Via hydraulic motor drive to hang main shaft, main shaft extension via the hydraulic cylinder to drive the joint lever, via the taper adjustment block to realize extension the coil.

Feeding and stop is via photoeletric controller

The feeding car is via bottom two cylinders shrink to realize the car lifting.

Feeding car power is driven by gearbox and motor in the bottom of the car.

2，leveling and pinching

The leveling roller is four rollers for feeding, four rollers for guiding, five rollers for leveling. It is including leveling rollers, mobile slider, rack leveling gap adjustment device, etc. the roller is arrangement with 2 top rollers and 3 bottom rollers. The bottom rollers are installed on the machine foundation via roller base, the top rollers are installed on the moving beam via the roller base.

The coil is via decoiler to pass the left and right roller guide to the pinch roller, which transfers to 5 roller leveling device to level. Leveling device power is 5.5KW, 2 pinch rollers are with clutch, after the steel is pre-leveling, via left and right guide roller and top and bottom pinch rollers to transfer the steel to the forming machine, the clutch break away, the feeding power is closed.

3，Roll forming machine

Material feeding width ：302mm

thickness range of the material：3-6mm

Roller steps：8 steps ，3 steps vertical rollers and 3 steps cross roller

Main shaft material：40Cr，with thermal refining treatment HB260；Diameter：120mm

Roller material：Cr12Mov（quenching treatment HRC58~62)，roll gap is adjusted by adjusting screw，adjusting screw diameter

35mm。

Drive mode: one group gearbox to drive 14 pcs power distribution boxes, top and bottom cardan shaft and main machine connection.

Distribution box(spiral bevel gear) :14M，gear：12M

Main motor power：55KW

Drive mode: motor→ reducer→ distribution box → cardan shaft →roll forming machine

4， Leveling

Application : using in the fine turning for the metatypic material after forming in order to guarantee the material straightness and flatness of the material.

Structure and function: Turkish correction head.

It is installed the rear of the roll forming machine, which is including main foundation, slide rack, rotation foundation, and leveling rollers. Leveling rollers can be adjusted left, right and top and bottom.

Function: fixing the length of the section and cutting

Oil pump drive motor power：22Kw

Oil pump mode：Plunger pump，Max pressure：25Mpa

Blade material：Profiling 45° blade, SKD11die steel ，quenching treatment HRC58-62

Function and structure: Hydraulic cutting, hydraulic punching system.

6，PLC system

The whole line is used PLC to control, using man-machine interaction mode to input and modify the parameter, Operating cabinet is located in the output in order to operate the machine, easy to operate and match the jerk button. Electronic cabinet is close to the motor in order to reduce the energy consumption.

Setting : “Automatic , manual “ picture, setting “monitor” picture in order to know the production situation. Setting the parameter display function, input and editing function, accumulative function and fault display.

Safety function:

1） Under the mode of manual or commissioning, operating panelswitch can order the each component to operate.

2） Setting short range back off function

3） For using the electrical appliance in steady working condition, the electronic cabinet installs the A/C.

7，Production precision

1）Total length size error：±1mm

2）Blade section flatness≤0.5mm

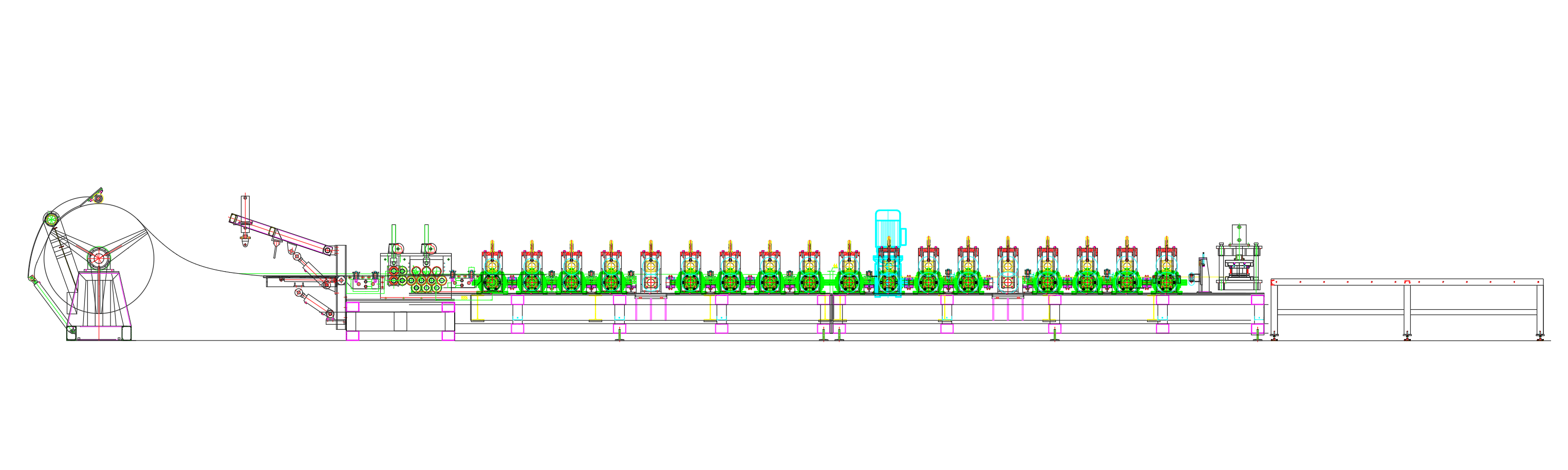

Layout
