CU stud and track roll forming machine

                                                                  CU stud and track roll forming machine

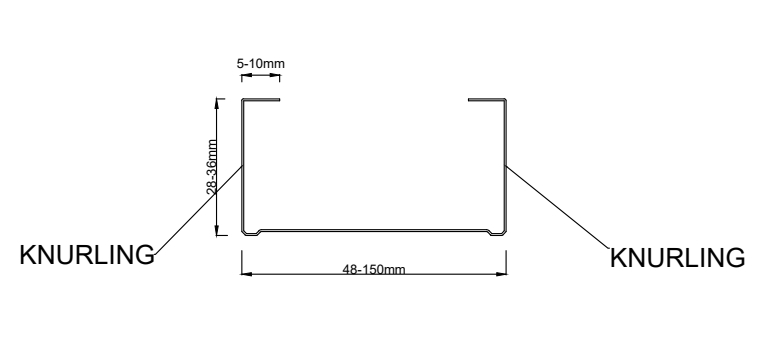

CU stud and track roll forming machine can make all kinds of light stud to meet all the requirements in this area, ceiling and partition roll forming machine is the most popular machine and its product includes stud, track, furring channel, main channel (primary channel), carrying channel, wall angle, corner angle, edge bead, shadow line wall angle, top hat, clip, etc, our machine has an extensive use in Drywall system, Ceiling system and Floor system. Thickness is normally 0.4-0.6mm or up to 1.2mm. Raw material could be: cold-rolled steel, Galvanized steel, PPGI, high-tensil steel. Our machine speed can reach about 70M/min, if you want the automatic stacker, we also can make the stacker in order that you save your labor cost.

A. Main data
1. Material texture: : Cold-rolled sheet Galvanized steel  YS：≤350MPA
2. Material thickness: 0.3-0.6mm
3.Feeding width: /
4.effective width: 60mm
5.Decoiler : Manual decoiler (3T)
6.Machine structure mode: column structure
7.Drive mode: column structure with gear drive or chain drive (according to customer requirement)
8. Main motor power: 5.5 KW
9.Forming roller step : 12 steps
10.Roller material : Cr12Mov , with quenching treatment
11. Main shaft diameter: φ50mm
12. Cutting mode: Hydraulic cutting system，cutting blade material SKD11
13. Hydraulic station motor power：3KW（with energy accumulator）
14. PLC: Siemens PLC, YASKAWA frequency converter, Omron encoder
15.Working speed: ：0-70 m/min ( including the punching time )
16.Automatic output table ：2.5M  （or customized）

B. Production technology Process
Manual decoiler(3T) →roll forming→hydraulic cutting →output

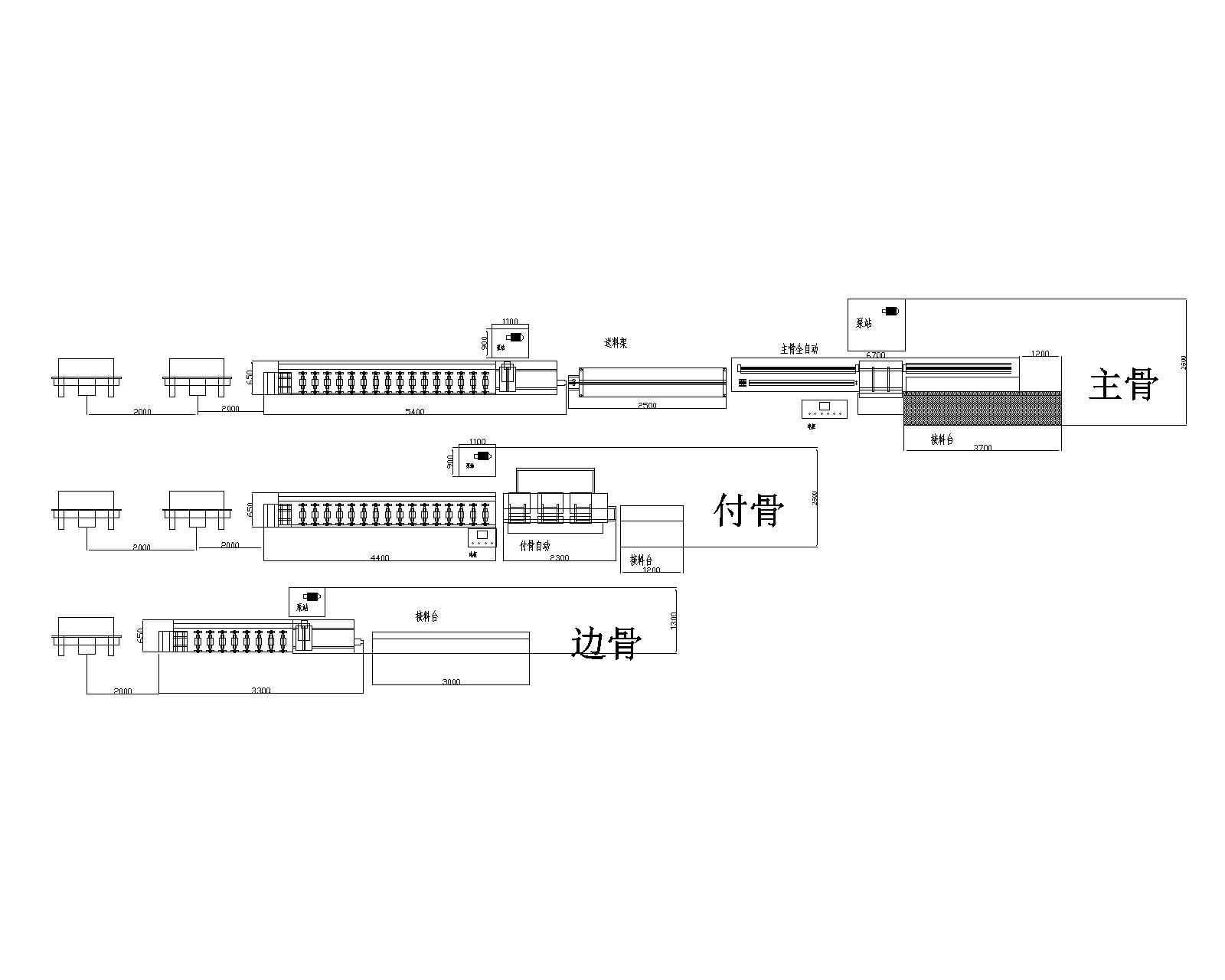

Layout
