Angle roll forming machine
Tel: 8618961855618
Whatsapp: 8618961855618
Angle roll forming machine
The light steel stud roll forming machine can make all kinds of light stud to meet all the requirements in this area, Light Gauge steel roll forming machine is the most popular machine and its product includes stud, track, furring channel, main channel (primary channel), carrying channel, wall angle, corner angle, edge bead, shadow line wall angle, top hat, clip, etc, our machine has an extensive use in Drywall system, Ceiling system and Floor system. Thickness is normally 0.4-0.6mm or up to 1.2mm. Raw material could be: cold-rolled steel, Galvanized steel, PPGI, high-tensil steel. Our machine speed can reach about 70M/min, if you want the automatic stacker, we also can make the stacker in order that you save your labor cost.
A Main data
| Item | Specification | Unit |
1 | Machine Type | Angel bar profile | |
2 | Structure | Column structure | |
3 | Raw material | Galvanized steel coil | |
4 | Feeding width | / | mm |
5 | Effective width | 25 | mm |
6 | Thickness | 0.4-0.9 | mm |
7 | Yield strength | 350 | Mpa |
8 | Forming speed | 0-100 | m/min |
9 | Roller QTY | 10 | Step |
9 | Main power | 7.5 | KW |
10 | Roller material | Cr12, with quenching treatment, and chroming plate on the surface | |
11 | Embossing device | Knurling and small wave( 2 sets) | |
11 | Main shaft material | 45# high quality steel with thermal refining treatment | |
12 | Main shaft diameter | 60 | mm |
12 | Blade material | Cr12Mov quenching treatment | |
13 | Cutting mold | Servo following cutting system | |
13 | Color | ( customized) |
B.Machine structure
The roll forming machine is including 2T manual decoiler, drive system, roll forming machine, cutting device, hydraulic system, electric system, and output table, etc.
C. Production technology process
Feeding forming
following cutting
output

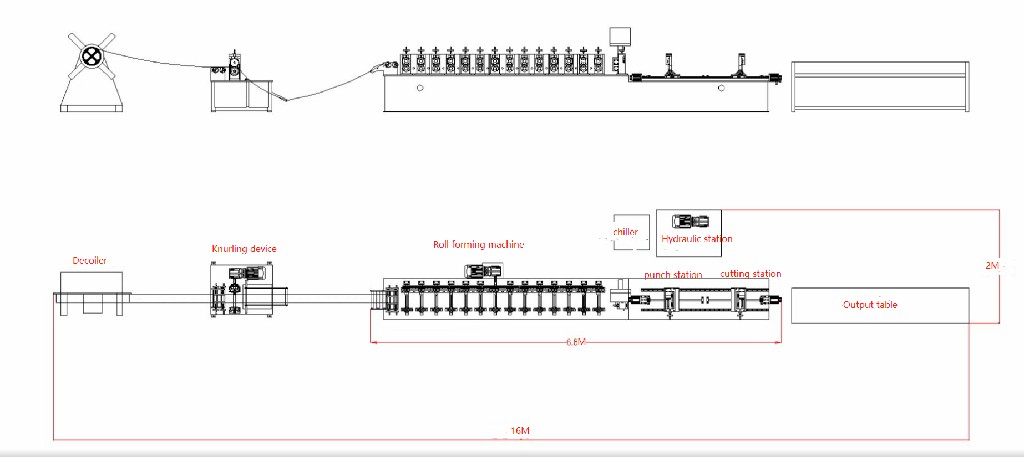

Layout
