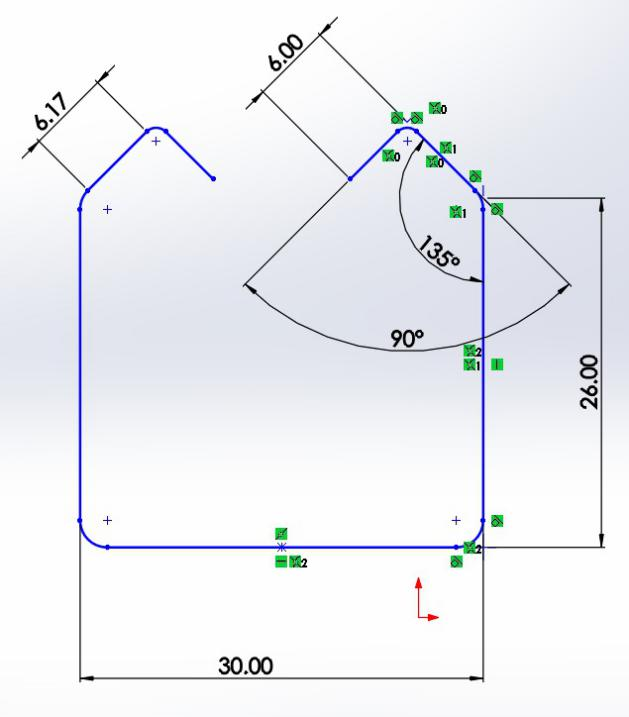

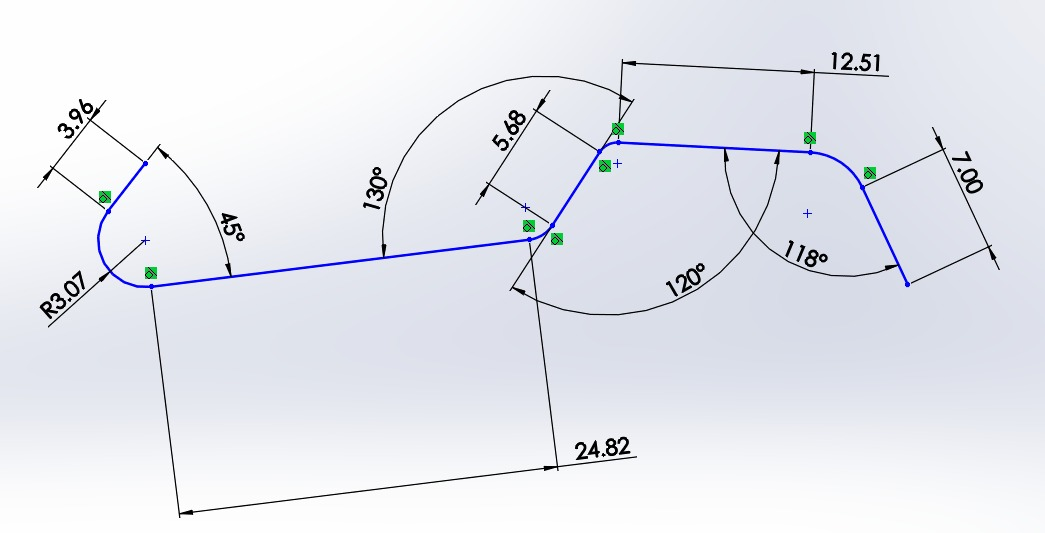

2 in 1 roll forming machine can make the light gauge C or U profile, this kind of machine design can save your cost and space, if the customer don’t have enough place too many machines, you can choose this kind of design, that is to say one machine can make two different profiles, there are a lot of profiles of C or U, or V and other special profiles. We can design the machine according to these profiles.
The whole line is included decoiler, main roll forming machine, punching system, cutting blade, electrical system, hydraulic system, etc. If you want to learn more about the machine, please contact us.



A. Main data

1.Machine Type: C shape

2.Structure: Wall board type

3.Raw material: SS400, Q235

4.Feeding width: / mm

5.Effective width: 150/15 mm

6.Thickness: 1.2-2.0 mm

7.Yield strength: 550 Mpa

8.Working speed: 12-15 m/min

9.Roller QTY: 14 Step

10.Roller material: GCr15, quenching treatment with hard chrome plating

11.Main shaft material: 40Cr, with quenching treatment

12.Diameter of the shaft: 75 mm

13.Main motor power: 11 KW

14.Hydraulic station power: 3 KW

15.Hydraulic pressure: 12 Mpa

16.Voltage: According to the requirement of customer

17.Blade material: Cr12 quenching treatment

18.Electric system: Panasonic PLC

19.Cutting mode: Hydraulic cutting, cutting after forming

20.Color: Blue+ yellow

21.Container dimension: 1x40 GP

22.Weight: 6 T
B.Structure

The machine is including 3T manual decoiler, drive system, roll forming machine, cutting device, hydraulic system, electric system and output table, etc.

C. Production technology Process

Feeding → Leveling → Forming → Adjusting → Cutting after forming → Output

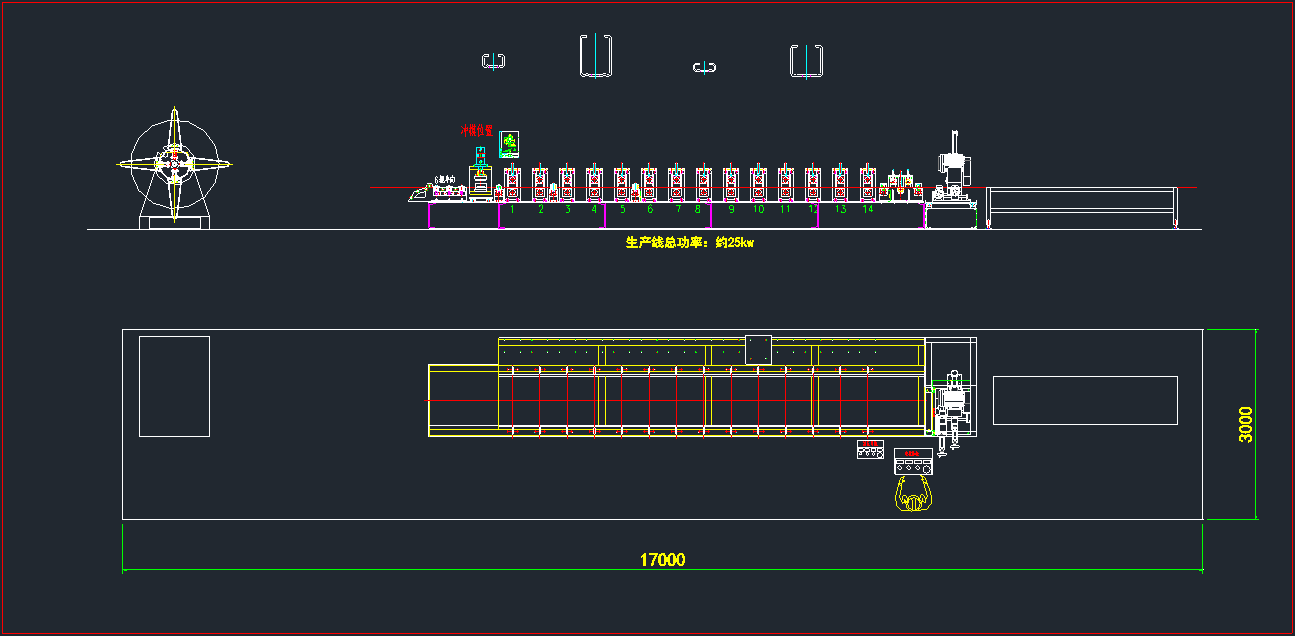

Layout
